GS-2646
Slab Scissor Lifts
84b55d59b6484f72a02bdd5dff2d75c5.jpg?sfvrsn=a7595115_1)
Overview

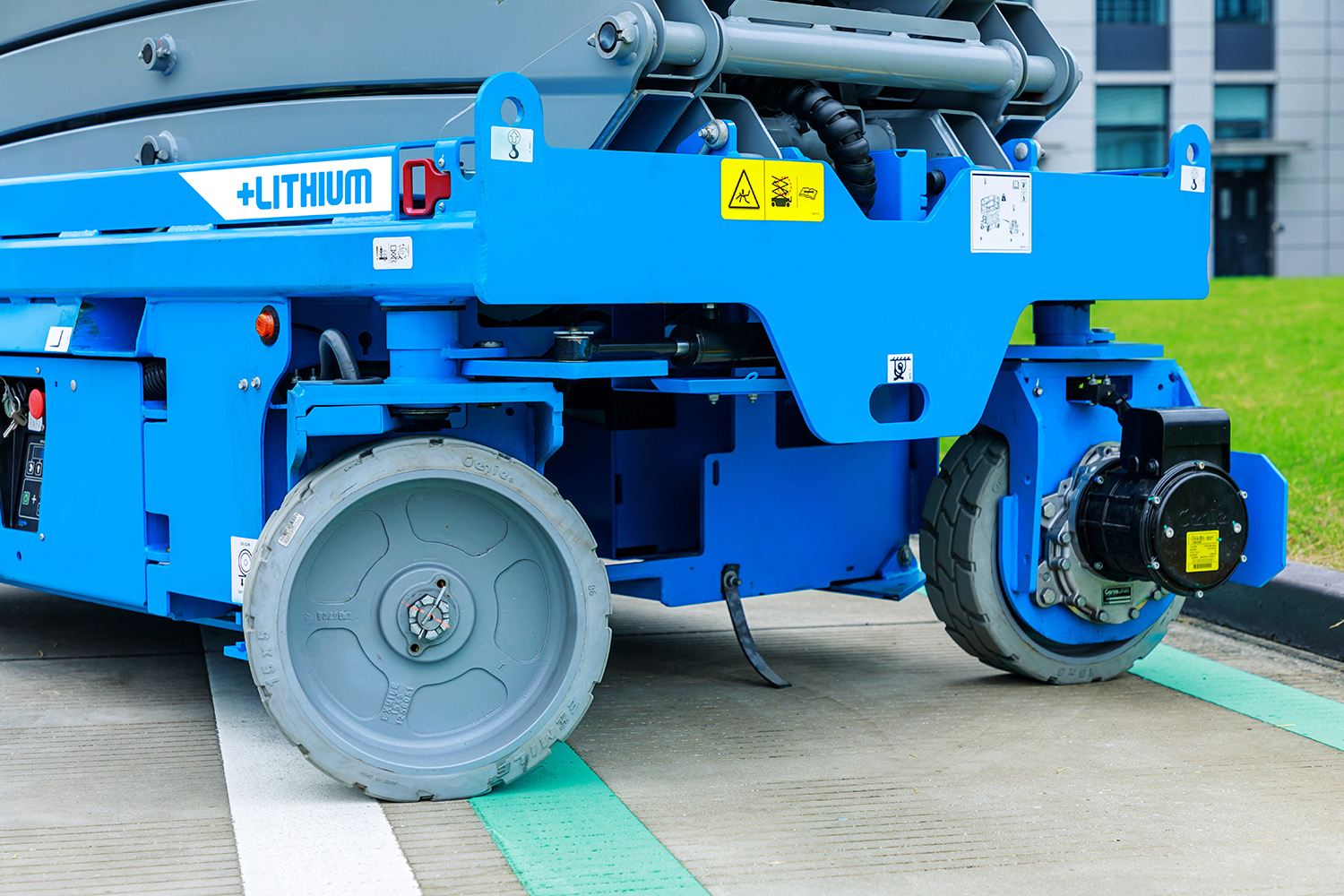

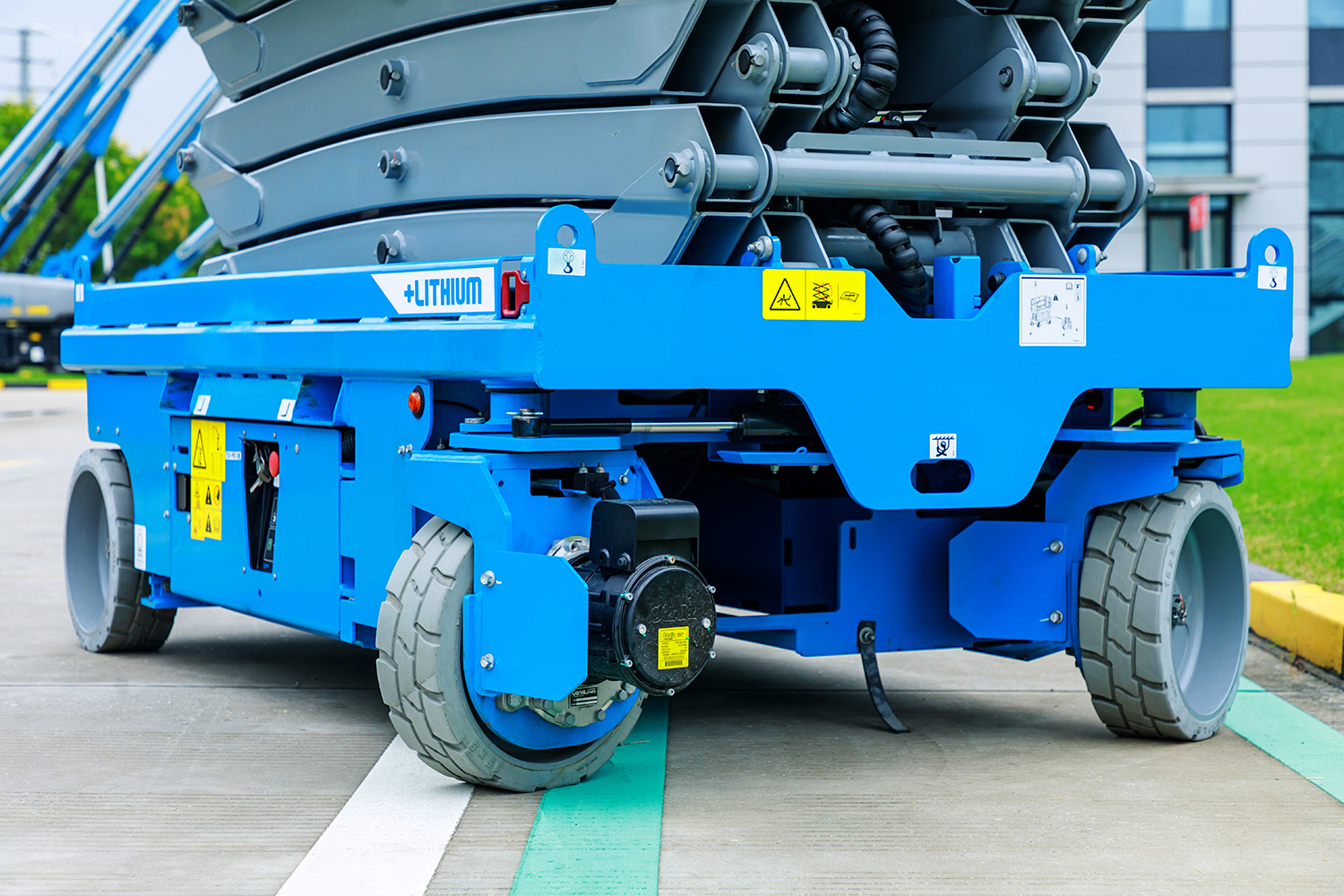

- Powerful AC electric drive motors for unmatched driving performance and industry-leading runtime per battery charge
- Quiet, zero-emission electric operation
- Front-wheel drive and zero inside turning radius for easy positioning
- 25% gradeability with 14° breakover angle to easily get up slopes and loading ramps
- Large platform workspace with 36 in (0.91 m) roll-out platform extension
- Swing out components trays for easy access
- Redesigned, user-friendly platform control box with Smart Link™ dual-zone controls for indoor and outdoor use
- Optional: Genie® Lift Tools™ Spill Guard hydraulic oil containment system
- Optional: Lithium-Ion battery
| Specification | Value |
|---|---|
| Max Working Height | 31 ft 9 in | 9.85 m |
| Platform Capacity | 1,000 lb | 454 kg |
| Machine Width | 3 ft 10 in | 1.17 m |
| Machine Length | 7 ft 9 in | 2.36 m |
| Weight | 4,286 lb | 1,944 kg |
- GS-2632 & GS-2646 Product Specification 2024 CE
- GS-2632 & GS-2646 Product Specification 2024 ANSI
- To view earlier versions of this specification sheet, please click here and look up for your machine Operator Manual by serial number.
The relevant specification data will be on the last page.
