ZX-135/70
Articulated Boom Lifts

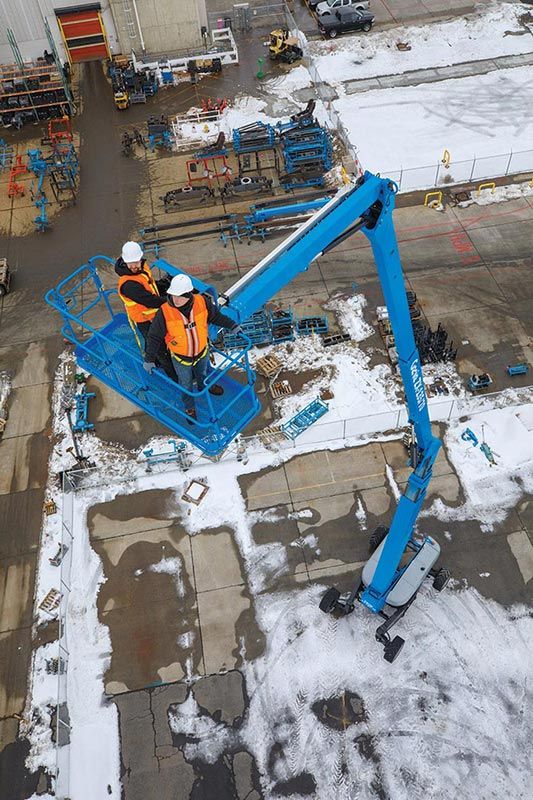

Ideal for outdoor construction and industrial applications, the Genie® ZX®-135/70 articulating boom lift delivers access to up, over and out applications inaccessible by a traditional jib. Four-wheel drive with full-time positive traction means that this articulating boom can handle rough jobsite ground conditions with ease.
Overview
- Mini Genie X-Chassis® system extends and retracts to provide both stability on the job and a narrow profile for transport
- Telescoping Jib-Extend® jib extends from 12 to 20 ft (3.66 to 6.10 m) and provides a 110˚ vertical range of motion
- 360˚ continuous rotation turntable and 160˚platform rotation for fast, easy positioning
- Four-wheel steer with front-wheel, rear-wheel, crab and coordinated steer options available to provide additional maneuverability
| Specification | Value |
|---|---|
| Max Working Height | 141 ft | 43.15 m |
| Max Horizontal Reach | 69 ft 9 in | 21.26 m |
| Max Up and Over Clearance (riser extended) | 75 ft 6 in | 23.01 m |
| Below Ground Reach | 19 ft 3 in | 5.87 m |
| Platform Capacity | 600 lb | 272 kg |
- ZX-135/70 - Product Specifications - 2022 - EN-US
- To view earlier versions of this specification sheet, please click here and look up for your machine Operator Manual by serial number.
The relevant specification data will be on the last page.
