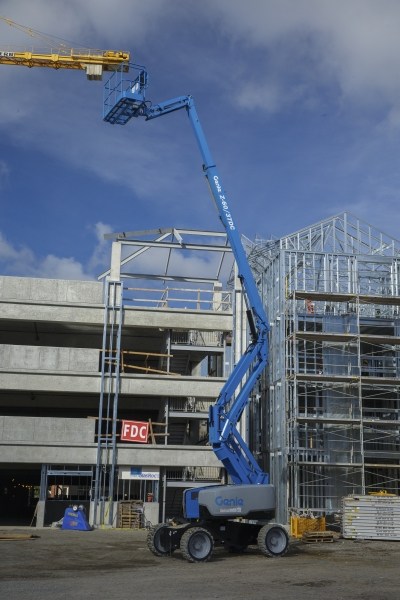

Z-60 FE

Articulated Boom Lifts

The Genie® Z®-60 FE is two machines in one. The ‘full electric’ mode offers a full-day, emission-free run time on a single charge. The ‘hybrid’ mode offers one week of run time with a single tank of diesel. The ideal, environmentally-friendly solution for increased efficiency and a lower cost of operation.

Overview

Full-time active oscillating axle helps maintain traction on rough terrain
4WD and 45% gradeability for superior terrainability
High-efficiency AC drive system for enhanced driving performance and simplified maintenance
Two modes of operation: all-electric and Hybrid, with outstanding efficiency and jobsite versatility
Dual parallelogramme and fully proportional controls for precise boom positioning and smooth performance
1.52 m (5 ft) articulating jib with a 135° range of motion to accurately position workers
Genie Fast Mast™ boom system allows operators to descend and retrieve materials and quickly return to working height

Nota: The attached Global spec sheet shows the All-electric version of the Z-60. This product is available in Australia only in hybrid version.

Get a Quote Order Parts Manuals

Specifications
Downloads

Specification	Value
Max Working Height	65 ft 7 in \| 20.16 m
Max Horizontal Reach	36 ft 7 in \| 11.15 m
Max Up and Over Clearance (riser extended)	24 ft 3 in \| 7.39 m
Platform Capacity	500 lb \| 227 kg

Z-60 FE Product Specifications 2024
To view earlier versions of this specification sheet, please click here and look up for your machine Operator Manual by serial number.
The relevant specification data will be on the last page.
